CVE-2026-22208: Security Vulnerabilities in S-100-Based Maritime Navigation Software

Analysis of Security Vulnerabilities in S-100-Based Maritime Navigation Software

Our latest research paper has been published in Sensors (SCIE), uncovering critical security vulnerabilities in the S-100 standard used for next-generation Electronic Chart Display and Information Systems (ECDIS).

• Journal: Sensors, Vol. 26, No. 4, p.1246, 2026
• Authors: Hoyeon Cho, Changui Lee, Seojeong Lee
• Affiliations: Korea Maritime & Ocean University; SemanticWave
• DOI: 10.3390/s26041246
• Special Issue: Cyber Physical System: Security and Resilience Challenges and Solutions

---

CVE-2026-22208

A Common Vulnerabilities and Exposures (CVE) identifier was assigned for the critical vulnerability discovered in this research:

• CVE ID: CVE-2026-22208
• CVSS Score: 9.3 (Critical)
• Type: Remote Code Execution (RCE)
• Vector: Malicious Portrayal Catalogue containing weaponized Lua scripts

---

Key Findings

The Vulnerability

The S-100 standard uses Lua scripts within Portrayal Catalogues to render electronic navigational charts. However, the standard lacks security specifications for script execution. We discovered that OpenS100, a reference implementation for next-generation ECDIS, runs an unrestricted Lua interpreter — granting full access to os, io, debug, loadfile, and dofile libraries.

This means a malicious Portrayal Catalogue can:

• Execute arbitrary system commands
• Read/write files on the host system
• Establish persistent backdoors
• Exfiltrate sensitive navigation data

SAST Tools vs. Expert Review

We evaluated four automated Static Application Security Testing (SAST) tools against expert manual security review:

Method	Vulnerabilities Found	Detection Rate
SAST Tools (combined)	4 of 23	17%
Expert Manual Review	23 of 23	100%

Automated tools failed to detect 83% (19/23) of expert-identified vulnerabilities, including the critical RCE flaw. The primary reasons:

• Limited maritime domain knowledge — tools lack understanding of S-100 standard semantics
• Cross-language blind spots — unable to trace security risks across the C++–Lua interface
• Specification-level flaws — tools focus on code bugs, not design-level security gaps

Root Cause: Specification Gap

The vulnerabilities stem from gaps in the S-100 standard itself, not isolated coding errors. The IHO S-100 Part 9a specifies the use of Lua for portrayal but does not mandate:

• Script sandboxing
• Library restrictions
• Input validation for catalogue files
• Integrity verification of Lua scripts

---

RCE Demonstration

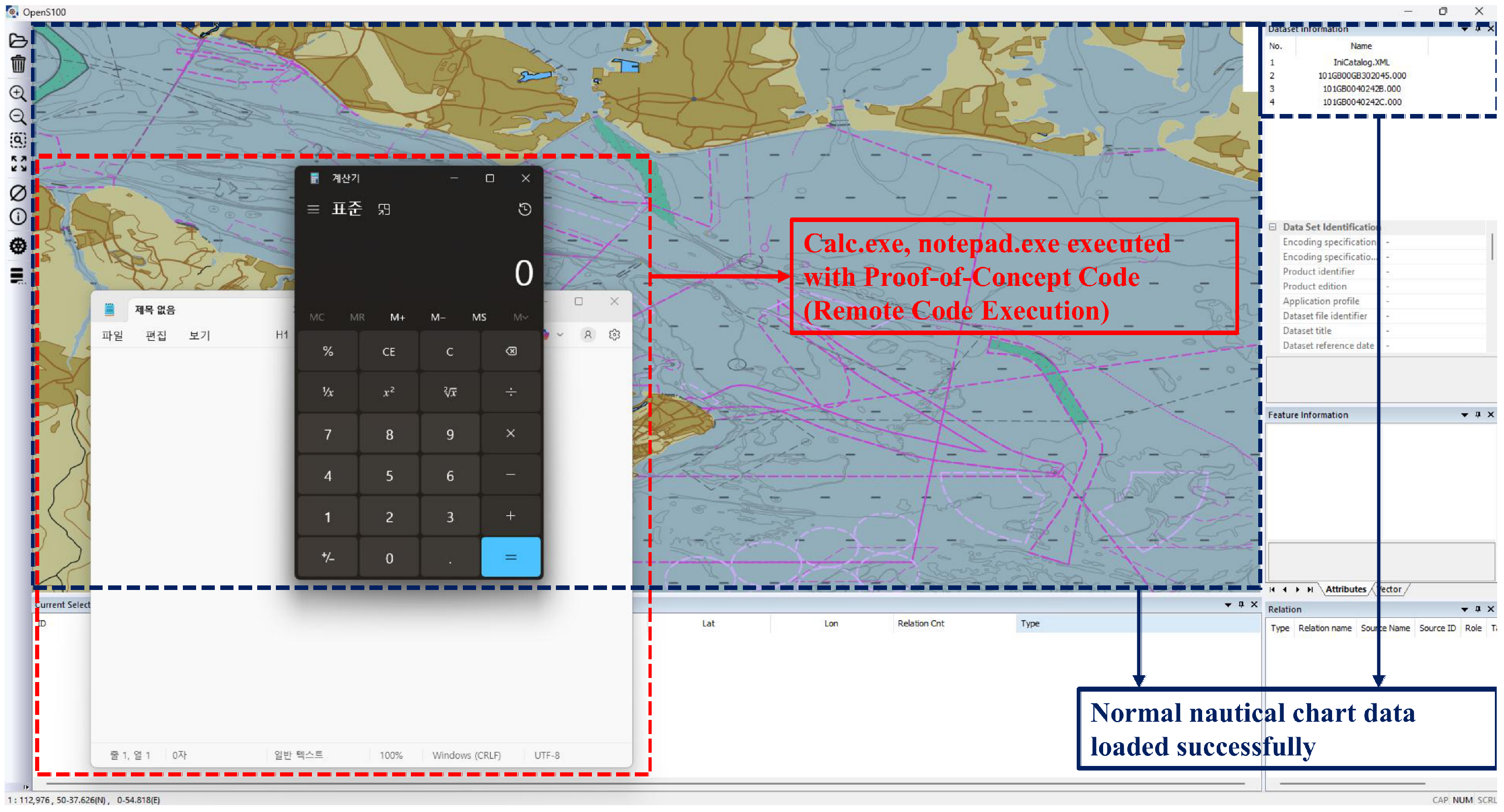

Proof-of-Concept: calc.exe and notepad.exe executed via malicious Portrayal Catalogue while normal nautical chart data loads successfully in OpenS100

---

Exploitation Lifecycle

Attacker crafts malicious Portrayal Catalogue
        ↓
Catalogue distributed via supply chain
(update server, USB, network share)
        ↓
ECDIS loads Portrayal Catalogue
        ↓
Unrestricted Lua interpreter executes malicious scripts
        ↓
Remote Code Execution achieved
(data exfiltration, persistent backdoor, system compromise)

---

Recommendations

The paper proposes that the International Hydrographic Organization (IHO) incorporate the following security controls into the S-100 framework before the 2029 mandatory adoption deadline:

1. Script Sandboxing — Restrict Lua execution to safe libraries only (base, string, table, math)
2. Library Restrictions — Disable os, io, debug, loadfile, dofile
3. Catalogue Integrity Verification — Cryptographic signatures for Portrayal Catalogues
4. Restricted File System Access — Limit searchable paths to the Portrayal Catalogue directory only

These recommendations are already implemented in our FerriteS100 project as a reference for secure S-100 portrayal engine design.

---

Significance

This is the first published CVE targeting the S-100 maritime navigation standard. The findings demonstrate that:

• Functional safety certifications alone are insufficient — security must be addressed at the design level
• Automated tools cannot replace expert security review for domain-specific maritime software
• The S-100 standard requires urgent security amendments before its mandatory adoption in 2029

---

Citation

@article{cho2026s100security,
  title={Analysis of Security Vulnerabilities in S-100-Based Maritime Navigation Software},
  author={Cho, Hoyeon and Lee, Changui and Lee, Seojeong},
  journal={Sensors},
  volume={26},
  number={4},
  pages={1246},
  year={2026},
  publisher={MDPI},
  doi={10.3390/s26041246}
}
